Precision Jig Boring Services
Our jig boring services deliver holes with exact location, size and depth, held to ±0.005. Engineer-reviewed quotes in 6 hours, no MOQ, and turnaround in 4–7 days.
-
±0.005
Tight Tolerance
-
4–7 Days
Turnaround
-
6 Hours
Engineer Quote

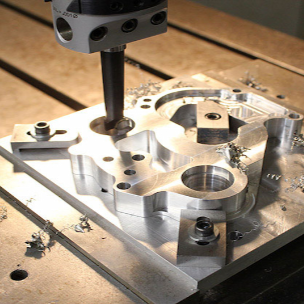

Jig Boring for Accurate, Repeatable Holes

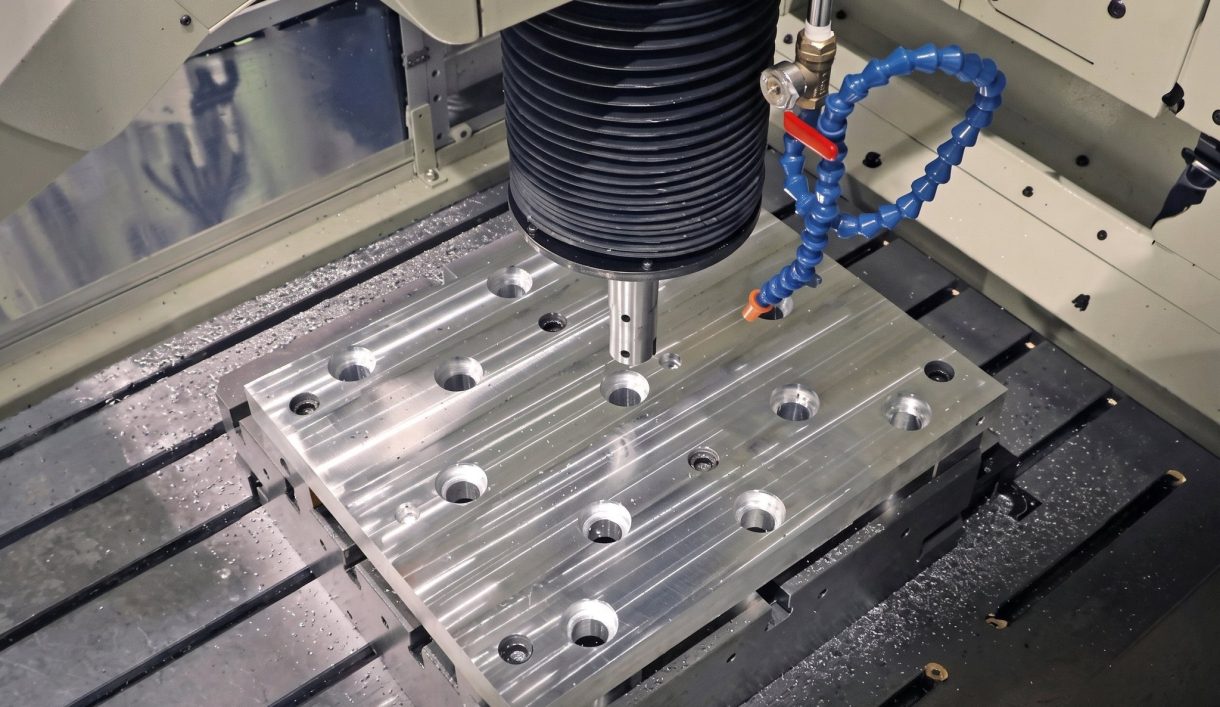

Jig boring is a finishing process that places precise holes at an exact location, size and depth. Unlike general CNC drilling or CNC milling, it runs on a specialized machine built to hold tolerances in the micron range.

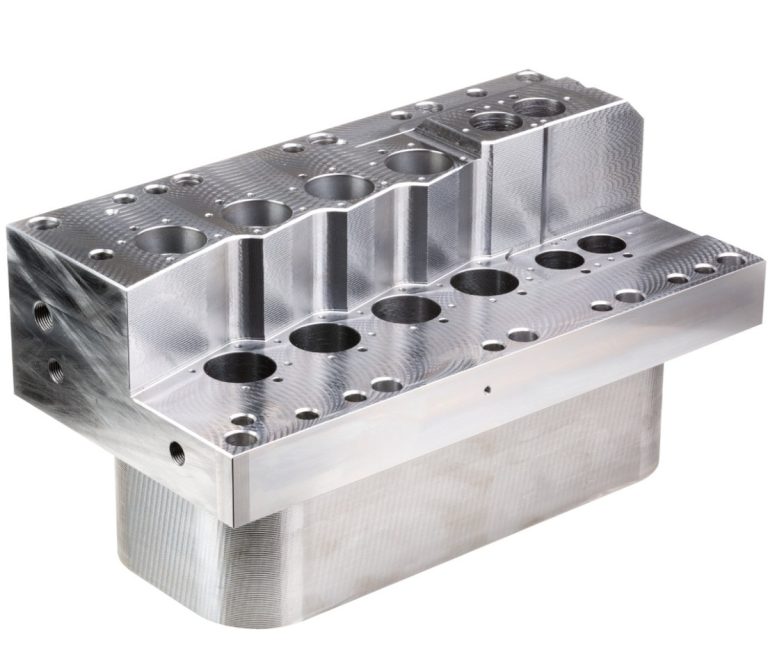

At DEK, engineers use it for parts that need exact alignment between holes or identical dimensions across multiple units, in metals and plastics. It also reworks existing parts by enlarging or correcting misaligned holes, alongside our CNC boring services.
Why Engineers Choose DEK for Jig Boring
More than 2300 engineers work with us for hole accuracy, complex part capability and quotes reviewed by experienced engineers.
-
Exceptional Precision
Tight tolerances and micrometer-level control on holes, bores and alignment features give consistent fits that cut assembly time and rework.
-
Complex Geometry
Parts with multiple features, contours and tight spatial constraints, including angular bores and deep holes, handled with smart programming.
-
Reliable Delivery
Efficient workflow and flexible scheduling turn jig boring projects around in 4–7 days, with smooth global delivery when we say we will.
-
Cost-Effective Solutions
No MOQ, a no-waste approach and optimized setups keep costs under control, even for low volumes or complex parts.
Engineer-Reviewed Quotes
We do not use automated quote tools. Mechanical engineers with over 10 years of experience review every drawing, accounting for heat treatment deformation and tight tolerances, and quote within 6 hours.
Jig Boring Capabilities & Materials
Hole accuracy, machine capability, metals, plastics and lead times for every jig boring project at DEK.
Jig Boring vs. CNC Drilling and Milling
Choose jig boring when hole location, size and depth must hold micron-level tolerances. Compare the hole-making options in our guide to drilling vs boring vs reaming.
| Criteria | This ProcessJig Boring | CNC Drilling | CNC Milling |
|---|---|---|---|
| Best for | Exact hole location and size | General hole making | General milled features |
| Precision level | Micron range, ±0.005 | Less tight than jig boring | Less tight than jig boring |
| Hole alignment | Exact, repeatable | Less critical | Less critical |
| Choose when | Microns decide fit | Hole accuracy less critical | Holes are not the key feature |
Industries That Rely on Jig Boring
Aerospace, automotive, electronics and medical device programs send us drawings where holes must align perfectly, plus tool making work.
-
Aerospace
-
Medical
-
Automotive
-
Robotics
-
Semiconductor
-
Electronic
-
Telecom
-
Drone & UAV
-
Energy
-
Oil & Gas
-
Marine
-
Industrial Equipment
-
Construction
-
Agriculture
-
Consumer Products
-
Military & Defense
-
Mining
-
AerospaceNon-flight-critical brackets, cabin hardware and fittings under AS9100D, in 7075 aluminum, Ti-6Al-4V and Inconel 718, with FAI.Learn More -
MedicalInstrument shafts, handles and cannulas in 316L stainless, titanium and PEEK under ISO 13485, with lot traceability as standard.Learn More -
AutomotivePrototype and low-to-mid-volume sensor housings, valve bodies and shafts in aluminum, 4140 and 4340 alloy steel, stainless and brass.Learn More -
RoboticsJoint housings, harmonic drive flanges and gripper fingers in aluminum and hardened steel, with 5-axis milling in one setup.Learn More -
SemiconductorChamber components, wafer handling fixtures and vacuum flanges in 6061 aluminum, 316L, PEEK and Kovar, with burr-free edges.Learn More -
ElectronicConnector bodies, heat sinks, RF shields and precision pins in aluminum, brass and copper, held to ±0.01 mm on contact features.Learn More -
TelecomWaveguide components, filter housings and RF enclosures in aluminum and copper alloys, with silver or nickel plating for conductivity.Learn More -
Drone & UAVMotor mounts, gimbal frames and landing gear fittings in 7075 aluminum, titanium and magnesium to cut weight without losing stiffness.Learn More -
EnergyBattery end plates, busbars, inverter housings and fuel-cell fittings in aluminum, copper and stainless, machined flat and burr-free.Learn More -
Oil & GasValve components, manifold blocks, downhole tool parts and flanges in 4140, 17-4 PH, duplex 2205 and Inconel, with hardness specs.Learn More -
MarinePropeller shafts, pump parts and deck hardware in 316 stainless, bronze and aluminum bronze, chosen first for corrosion resistance.Learn More -
Industrial EquipmentGripper plates, linear guide mounts, cam followers and machine frames in aluminum and steel, with fixtures kept on file for repeats.Learn More -
ConstructionStructural brackets, anchoring hardware and hydraulic fittings in mild steel, alloy steel and aluminum, zinc plated or powder coated.Learn More -
AgricultureGearbox housings, shafts, sprayer nozzle bodies and sensor mounts in cast iron, steel and stainless for abrasion and moisture.Learn More -
Consumer ProductsKnobs, handles, enclosure parts and audio hardware where the machined surface shows, anodized, bead blasted or polished to sample.Learn More -
Military & DefenseOptical mounts, enclosures and accessory rails in aluminum, steel and titanium, with material certification and FAI reports.Learn More -
MiningWear plates, bushings, crusher components and hydraulic fittings in hardened alloy steel, bronze and stainless for dust and vibration.Learn More
Hole Features & Challenges We Solve
Jig boring handles hole types and part geometries where alignment, depth and surface quality decide whether an assembly fits.
-
Angular Bores
Angular bores on complex components, located with advanced equipment and smart programming.
-
Deep Holes
Deep bores held to exact size and depth with smooth hole walls; for long drilled holes see deep hole drilling.
-
Multi-Hole Alignment
Exact hole-to-hole alignment and true positioning, with less reliance on manual layout or custom jigs and templates.
-
Tight Spatial Constraints
Components with multiple features, contours and tight spatial constraints: the parts other shops find too challenging.
-
Tooling & Fixture Bores

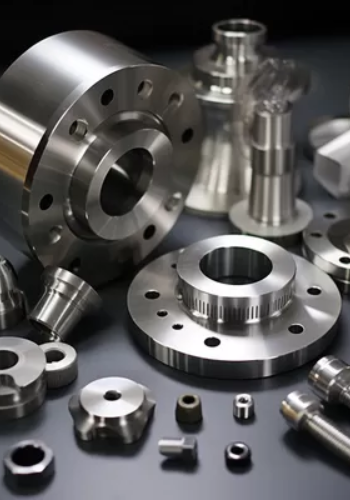

Precise holes in Invar and tool steel tooling, frames and fixtures for demanding technical settings.
Common Challenges We Handle
-
Misaligned Existing Holes
Reworking or restoring existing parts by enlarging or correcting misaligned holes, bringing them back to the required fit and function.
-
Soft Plastics
PTFE and PE are soft; a specialized jig boring technique prevents distortion and tearing while delivering burr-free cuts and tight fits.
-
Heat-Sensitive Clear Parts
Heat build-up is minimized when boring PC parts, avoiding distortion or haze and preserving transparency on covers.
-
Hard Tool Steels
Hard tool steel is machined efficiently with excellent finishes for mold-making, stamping and tooling components.
Certified, Measured, Documented
Every jig boring job runs through the same certified quality system, from drawing to shipment.
-
AS9100DAerospace Quality Management System
-
ISO 9001:2015Quality Management Standard
-
ISO 13485Medical Devices Quality Management
Metals and Plastics for Jig Boring
Choose a metal or engineering plastic for your jig bored part; each material page details grades and properties.
Engineering Plastics
Need another metal or plastic? Ask our engineers for advice
All MaterialsHow to Order Jig Bored Parts
Get a Quote for Jig Boring Services
No matter if your project is simple or complex, metal or plastic, send your drawings and get an accurate, engineer-reviewed quote within 6 hours.
- Tolerances within ±0.005
- Turnaround between 4–7 days
- No minimum order quantity
- ISO 9001:2015, ISO 13485, AS9100D
- Smooth, stress-free global delivery
