Custom Knobs Manufacturing
Custom knobs manufacturing and handles turned and milled with bores to H7 and ±0.005 mm dimensions. No MOQ, prototypes in 3–5 days, knurls cut true to the bore.
-
H7
Bore Fit
-
3–5 days
Prototypes
-
±0.003mm
Swiss Features
Custom Knobs Manufacturing and Machined Hardware
DEK machines control and instrument knobs, knurled thumb knobs, hand wheels, T-handles, L-handles and pull handles from 6061 and 7075 aluminum, brass, 303 and 316 stainless, titanium and Delrin.
These are the parts a user touches, so the specification is half function and half feel: bore fit, set-screw or collet grip, knurl pitch, edge radii and a durable finish. They are listed in our custom CNC machined parts catalogue, with Swiss-turned features to ±0.003 mm.
Types of Knobs and Handles We Machine

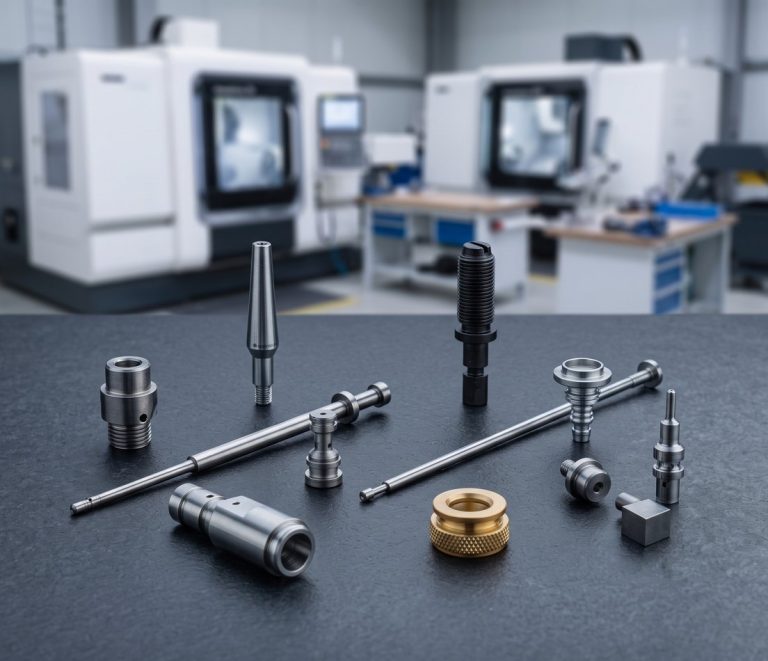

Knobs, handles and matching hardware turned and milled from aluminum, brass, stainless, titanium and Delrin bar.
-

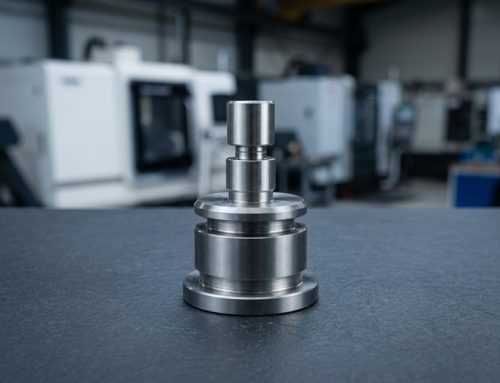

Custom Control KnobsPointer, skirted and dial knobs for switches, encoders and potentiometers. -

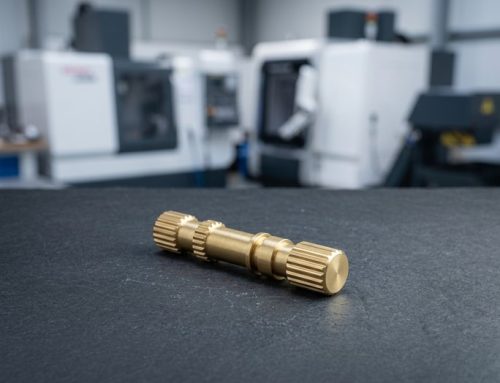

Knurled Knobs CNC TurnedStraight, diamond or helical knurls, plain or with a threaded stud. -

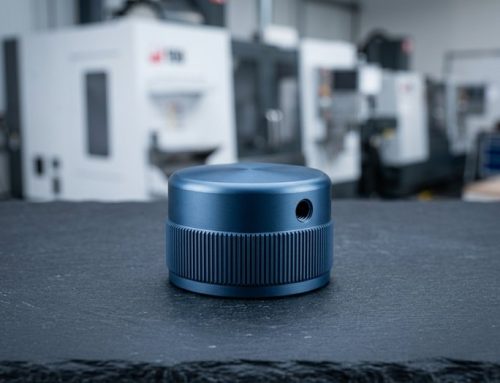

Machined Aluminum KnobsAudio, instrument, camera and lab equipment knobs, anodized in color. -

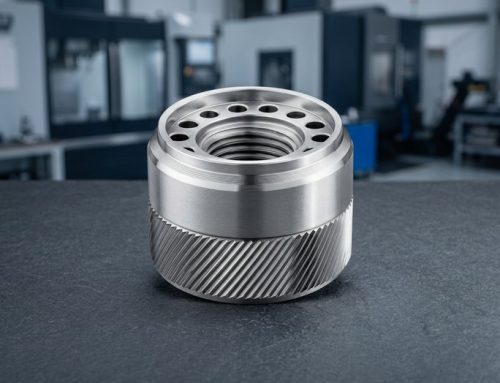

Hand Wheels & Thumb WheelsWheels and adjustment dials with engraved or laser-marked graduations. -

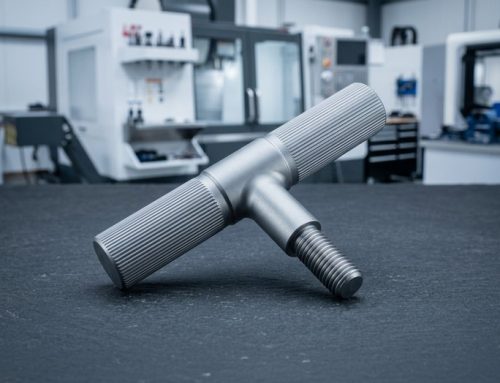

T-Handles & L-HandlesT-handles, L-handles and lever handles for clamps, valves and latches. -

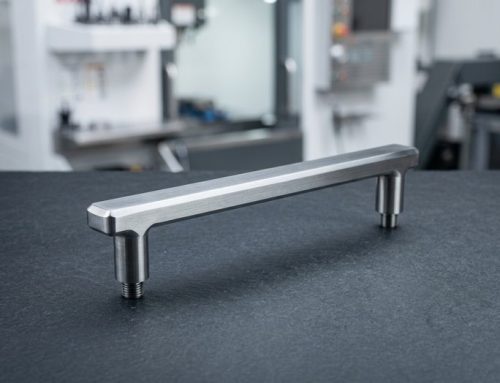

Pull & Rack HandlesPull handles, bar handles and rack handles for enclosures and cases. -

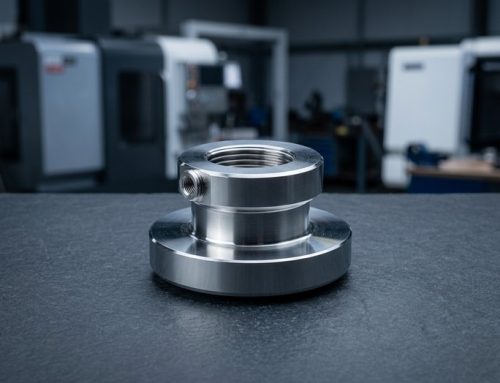

Matching Machined HardwareThumb screws, feet, bezels, end caps and collars to match the knobs.
Materials, Processes & Tolerances for Knobs
How we turn, mill and finish knobs and handles: the materials, the machines, the specs we hold and the finishes.
Design Tips for Custom Knobs and Handles
Five rules that decide how a knob fits its shaft, grips in the hand and holds its color after anodizing.
-
Define the Shaft Fit
Give shaft diameter, D-flat depth, length and fixing; "6 mm bore" without the flat or set-screw position leaves the fit undefined.
-
Match Knurl Pitch to Size
Use 0.8 mm diamond on 10–25 mm knobs and 1.0–1.2 mm on larger ones. See knurl vs spline.
-
Radius Every Gripped Edge
Add a 0.5–1.0 mm edge radius on gripped edges; a sharp anodized edge feels like a blade and chips.
-
Plan for Anodize Build-Up
Anodizing adds 10–15 µm per surface and darkens a knurl; if color matters, approve a sample before production.
-
Keep 2 mm Bore Walls
Hold the wall between bore and OD at 2 mm minimum in aluminum so set-screw torque does not distort the knob.
What to Call Out on Your Drawing
-
Shaft and Fixing
Shaft diameter and D-flat, then set-screw (M2–M6), collet or press fit; we match the bore to H7.
-
Knurl Style
Straight, diamond or helical to DIN 82, with pitch from 0.5 to 1.6 mm and the diameter it runs on.
-
Finish and Color
Blasted, anodized color or polished, plus laser-marked legends; we can approve a color sample before the run.
-
Quantity and Batch Size
From one prototype with no MOQ to a matched production set of knobs, handles and thumb screws shipped together.
Applications & Industries
Custom handles machining and knob work for audio, camera and instrument makers, electronics front panels and rack handles, and autoclavable medical knobs.
-
Aerospace
-
Medical
-
Automotive
-
Robotics
-
Semiconductor
-
Electronic
-
Telecom
-
Drone & UAV
-
Energy
-
Oil & Gas
-
Marine
-
Industrial Equipment
-
Construction
-
Agriculture
-
Consumer Products
-
Military & Defense
-
Mining
-
AerospaceNon-flight-critical brackets, cabin hardware and fittings under AS9100D, in 7075 aluminum, Ti-6Al-4V and Inconel 718, with FAI.Learn More -
MedicalInstrument shafts, handles and cannulas in 316L stainless, titanium and PEEK under ISO 13485, with lot traceability as standard.Learn More -
AutomotivePrototype and low-to-mid-volume sensor housings, valve bodies and shafts in aluminum, 4140 and 4340 alloy steel, stainless and brass.Learn More -
RoboticsJoint housings, harmonic drive flanges and gripper fingers in aluminum and hardened steel, with 5-axis milling in one setup.Learn More -
SemiconductorChamber components, wafer handling fixtures and vacuum flanges in 6061 aluminum, 316L, PEEK and Kovar, with burr-free edges.Learn More -
ElectronicConnector bodies, heat sinks, RF shields and precision pins in aluminum, brass and copper, held to ±0.01 mm on contact features.Learn More -
TelecomWaveguide components, filter housings and RF enclosures in aluminum and copper alloys, with silver or nickel plating for conductivity.Learn More -
Drone & UAVMotor mounts, gimbal frames and landing gear fittings in 7075 aluminum, titanium and magnesium to cut weight without losing stiffness.Learn More -
EnergyBattery end plates, busbars, inverter housings and fuel-cell fittings in aluminum, copper and stainless, machined flat and burr-free.Learn More -
Oil & GasValve components, manifold blocks, downhole tool parts and flanges in 4140, 17-4 PH, duplex 2205 and Inconel, with hardness specs.Learn More -
MarinePropeller shafts, pump parts and deck hardware in 316 stainless, bronze and aluminum bronze, chosen first for corrosion resistance.Learn More -
Industrial EquipmentGripper plates, linear guide mounts, cam followers and machine frames in aluminum and steel, with fixtures kept on file for repeats.Learn More -
ConstructionStructural brackets, anchoring hardware and hydraulic fittings in mild steel, alloy steel and aluminum, zinc plated or powder coated.Learn More -
AgricultureGearbox housings, shafts, sprayer nozzle bodies and sensor mounts in cast iron, steel and stainless for abrasion and moisture.Learn More -
Consumer ProductsKnobs, handles, enclosure parts and audio hardware where the machined surface shows, anodized, bead blasted or polished to sample.Learn More -
Military & DefenseOptical mounts, enclosures and accessory rails in aluminum, steel and titanium, with material certification and FAI reports.Learn More -
MiningWear plates, bushings, crusher components and hydraulic fittings in hardened alloy steel, bronze and stainless for dust and vibration.Learn More
Why DEK for Machined Aluminum Knobs
Cosmetic parts made by a shop built for tolerance work, with every process for a matched set under one roof.
-
Knurls True to Bore
The knurl and the bore are cut in one setup on the lathe, so the pattern runs true to the shaft with 0.02 mm OD-to-bore runout.
-
Matched Anodized Colors
Anodized colors are matched against an approved sample, and every batch is photographed before shipment.
-
Processes In-House
Turning, Swiss, milling, blasting, anodizing and laser marking are in-house, so knobs, handles and thumb screws ship together.
-
Certified Quality
Knobs and handles are made under ISO 9001:2015, ISO 13485 and AS9100D certified quality systems, including medical knobs.
Engineer-Reviewed Quotes
Every quote is reviewed by an engineer who checks your shaft fit, knurl style and finish, and returns pricing within 6 hours, with no MOQ and prototypes in 3–5 days.
Certified Quality for Every Knob
Knobs and handles are made under ISO 9001:2015, ISO 13485 and AS9100D.
-
AS9100DAerospace Quality Management System
-
ISO 9001:2015Quality Management Standard
-
ISO 13485Medical Devices Quality Management
Materials & Finishes for Knobs and Handles
Metals, plastics and finishes we use for knobs and handles, each applied to parts we machine.
Surface Finishes
Engineering Plastics
Need another alloy or finish? Ask our engineers.
View AllFrequently Asked Questions
Shaft fits, knurl patterns and anodized colors for custom knobs.
Get a Quote for Custom Knobs Manufacturing
Send a drawing or model with shaft details, knurl style, finish and color, and quantity. Engineer-reviewed quotes return within 6 hours.
- No MOQ, prototypes in 3–5 days
- Bores held to H7, ±0.005 mm metal
- Color sample approved before production
- Every batch photographed before shipment
