Precision Dowel Pin Manufacturing
Dowel pin manufacturing at DEK holds m6 or ±0.002 mm on ground diameters, with hardened pins at 58–62 HRC. No MOQ, prototypes in 3–5 days, every drawing engineer-reviewed.
-
±0.002 mm
Ground Diameter
-
3–5 days
Prototype Lead
-
0.5–50 mm
Pin Diameter
Custom Pins Manufacturing Since 2002

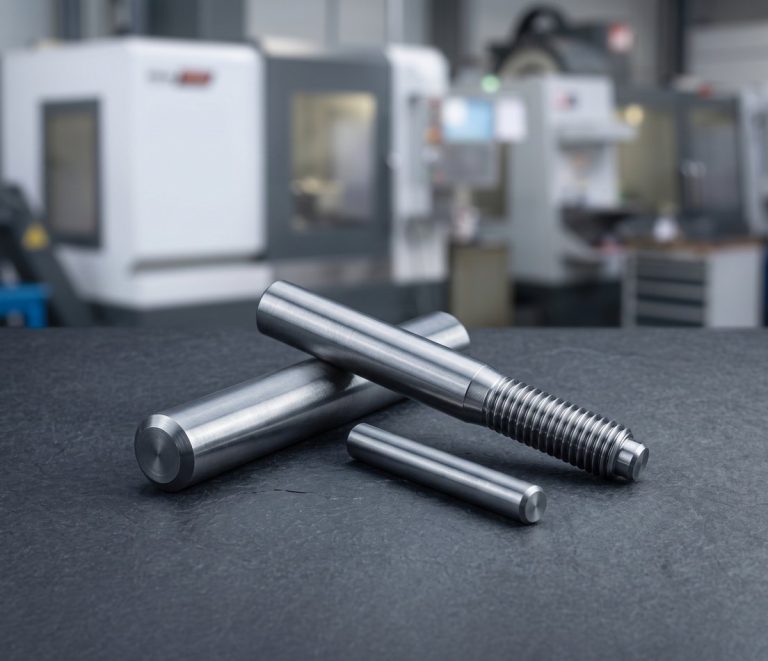

DEK opened in 2002 making core pins, ejector pins, and guide bushes for mold makers, and pins are still a daily product. Today we turn and grind dowel, locating, guide, clevis, taper, and shoulder pins from 0.5 mm to 50 mm diameter.
We work in tool steel, alloy steel, stainless, and titanium, with roundness to 0.002 mm and Ra 0.2–0.4 µm. Pins sit next to bushings and mold components in our custom CNC machined parts catalogue; for pin styles see 16 types of pins and their uses.
Types of Pins We Machine
Dowel, mold, guide, locating, clevis and special pins, turned from bar in tool steel, alloy steel and stainless, then ground.
-

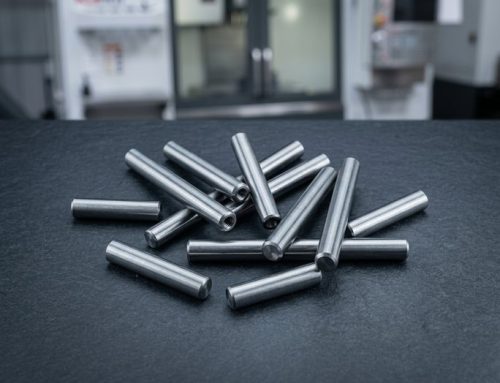

Custom Dowel PinsHardened or unhardened, non-standard sizes and pull-dowel threaded ends. -

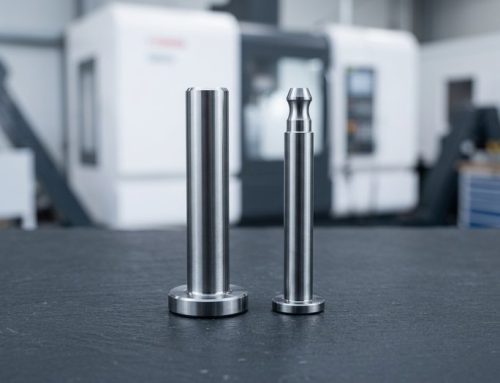

Core Pins and Ejector PinsFor injection molds and die-cast dies, with heads, flats and tip profiles. -

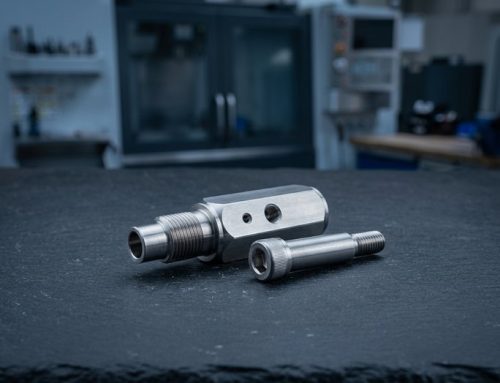

Guide Pins & Stripper BoltsGuide pins, leader pins and stripper bolts for dies and fixtures. -

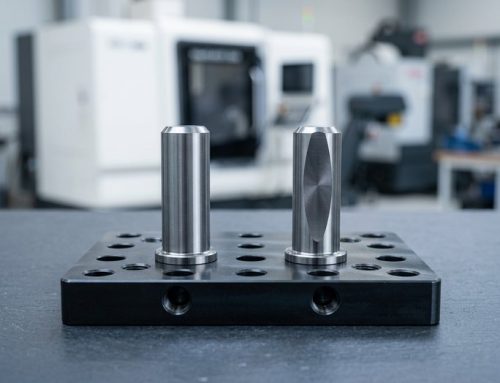

Locating & Rest PinsRound and diamond locating pins plus rest pins for CNC fixtures. -

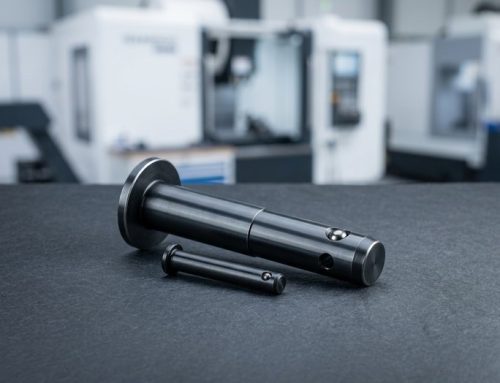

Clevis, Hinge & Pivot PinsCross holes for cotter pins or circlip grooves, for linkages and hinges. -

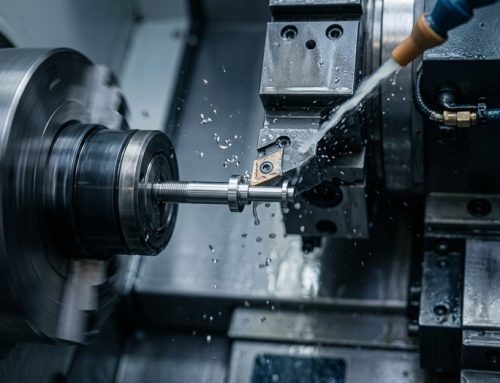

Precision Pins CNC TurnedSwiss-turned pins with D-flats, threads or knurled press-fit sections.
Materials, Processes & Tolerances for Pins
Pins are Swiss-turned, heat treated and ground in-house, in hardened tool steel or stainless, to fit-class tolerances.
Design Tips for Custom Pins
Four drawing choices decide whether a pin fits, survives heat treatment and seats cleanly in its hole.
-
Call Out the Fit Class
Use m6 for press fit or h6 for slip fit and specify the mating hole H7; never tolerance both to the same number.
-
Limit Length to 50× Diameter
Long thin pins move in heat treatment; grinding corrects diameter, not bow. Otherwise accept a straightness callout.
-
Chamfer or Round the Ends
A 15° chamfer or spherical end lets the pin self-center on insertion; sharp-ended pins shave the hole.
-
Define Ejector Pin Heads
Specify head diameter, head thickness and flat orientation to the tip profile when the tip is contoured.
What to Call Out on Your Drawing
-
Diameter Class
State m6, h6 or ±0.002 mm on the ground diameter, and the H7 hole it mates with, so grinding targets the right fit.
-
Hardness Range
Give the HRC range: 58–62 HRC for D2 / A2, 56–58 HRC for 440C, or nitrided H13 for ejector pins.
-
End Form & Features
Specify a 15° lead chamfer or R0.5 spherical end per ISO 8734, plus any threads, flats or cross holes.
-
Quantity & Reports
There is no MOQ: quote one prototype or a production batch, and ask for inspection reports if you need them.
Applications & Industries for Pins
Locating and rest pins for automation fixtures, hinge and clevis pins for medical instruments, mold pins for automotive tooling, stainless marine pins.
-
