Custom Flanges Manufacturing
DEK's custom flanges manufacturing holds sealing faces flat to 0.02 mm, bolt circles to ±0.05 mm and critical dimensions to ±0.005 mm. No MOQ, prototypes in 3–5 days, engineer-reviewed.
-
±0.005mm
Critical Tolerance
-
3–5 days
Prototype Lead
-
6–800 mm
Flange Diameter
Machined Flanges and CNC Fittings to Your Drawing
DEK turns and mills pipe and vessel flanges, vacuum flanges, waveguide flanges, hydraulic adapters, tube fittings and sanitary ferrules from 304/316 stainless, 2205 duplex, brass, 6061 aluminum, carbon steel and titanium. These are sealing parts, so we work to face flatness, sealing-face finish, bolt-circle position and thread class.
Flanges and fittings sit in our custom CNC machined parts catalogue: no MOQ, every drawing engineer-reviewed. Read what a flange is, or our guide on choosing the right flange type while the drawing is open.
Types of Flanges and Fittings We Machine
Pipe, vacuum, waveguide, hydraulic, tube, sanitary and high-purity parts, machined from bar, plate or customer-supplied forged blanks.
-

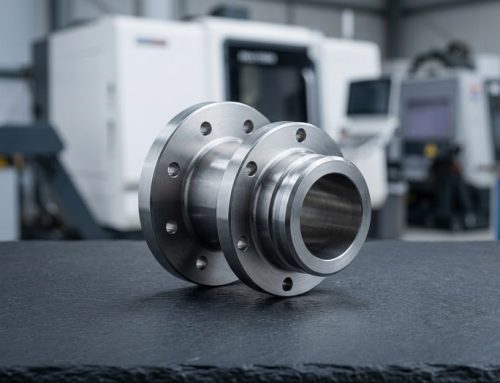

Pipe & Vessel FlangesWeld-neck, slip-on, blind and lap-joint flanges from bar, plate or forgings. -

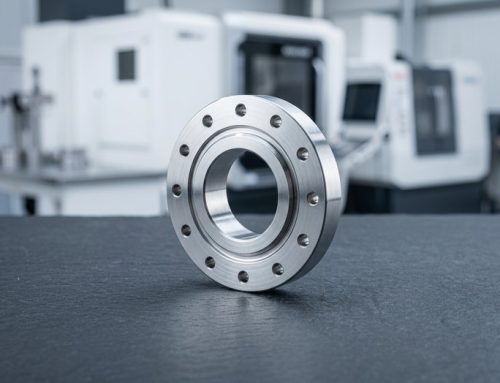

Vacuum FlangesKF, ISO-K and CF knife-edge flanges for chambers and feedthroughs. -

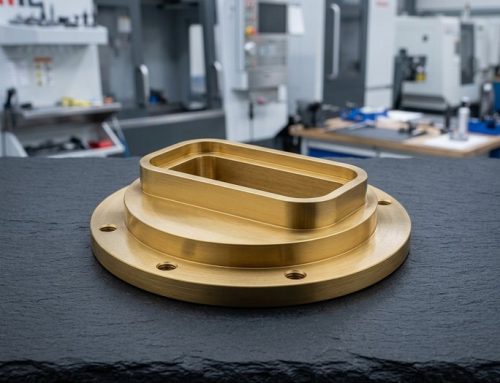

Waveguide FlangesWaveguide flange machining to UG, CPR and UBR/PBR series. -

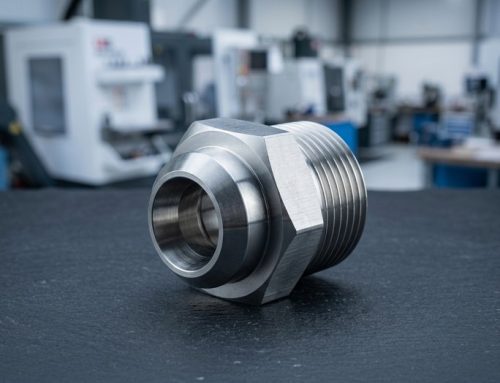

Hydraulic AdaptersCNC fittings with SAE ORB, JIC 37° flare, BSPP and NPT ends. -

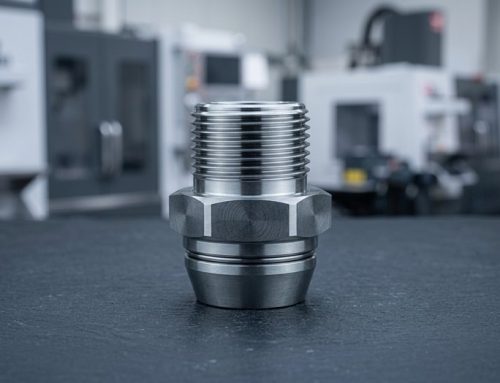

Tube Fittings & FerrulesTube fittings, ferrules and compression bodies in stainless and brass. -

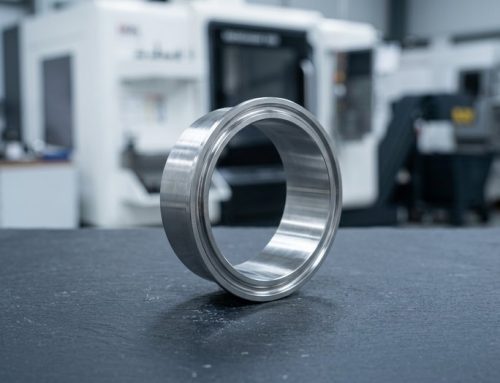

Sanitary Tri-Clamp FerrulesSanitary tri-clamp ferrules and adapters to ISO 2852 and DIN 32676. -

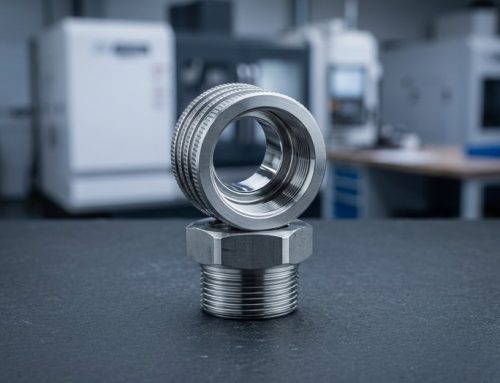

Ultra-High-Purity FittingsFittings with electropolished bores for gas and semiconductor lines.
Materials, Processes & Tolerances for Flanges
Grades, machining routes, sealing-face tolerances and finishes for custom flanges, adapters, ferrules and fittings, all from one shop.
Design Tips for Custom Flanges and Fittings
Six drawing habits that shorten review, keep sealing faces flat and avoid interpretation errors on flanges and fittings.
-
Reference the Standard
Cite ASME B16.5, EN 1092-1, ISO 2861 or MIL-DTL-3922 and dimension only the deviations: faster review, fewer errors.
-
Sealing-Face Finish by Function
Ra 0.4 µm for O-rings and metal seals; serrated Ra 3.2–6.3 µm on raised faces for gaskets that need bite.
-
CF Knife-Edge Details
State the knife-edge angle and height on the drawing, and ask for the edge to be protected before shipment.
-
Dual-Standard Adapters
Give both thread callouts with class on the drawing, for example 1/2-14 NPT to G1/2 ISO 228-1 class A.
-
Wall Behind the Raised Face
Keep at least 3 mm between the raised face groove and the bolt circle so the face stays flat under bolt load.
-
Welded Flanges and Fittings
When parts will be welded, specify 316L or 304L and ask for a weld prep chamfer to be machined in.
What to Call Out on Your Drawing
-
Standard or Drawing
Send a drawing or the standard reference (ASME B16.5, EN 1092-1, ISO 2852) so an engineer can check dimensions and thread callouts by hand.
-
Material and Pressure Rating
State the grade, from 304 or 316L to 2205 duplex or titanium grade 2, and the pressure rating the flange or fitting must hold.
-
Quantity and Certificates
Give the quantity, from one adapter to a 5,000-piece run, and ask for material and inspection certificates if you need them.
