What is a Wire Cutting Machine?
Wire cutting machines are essential tools in industrial operations, allowing the efficient and precise processing of materials for a wide range of applications.
But what exactly is a wire cutting machine? And how does it work?
In this blog post, we’ll explore the basics behind this equipment to help you decide if wire EDM machining might be right for your project.

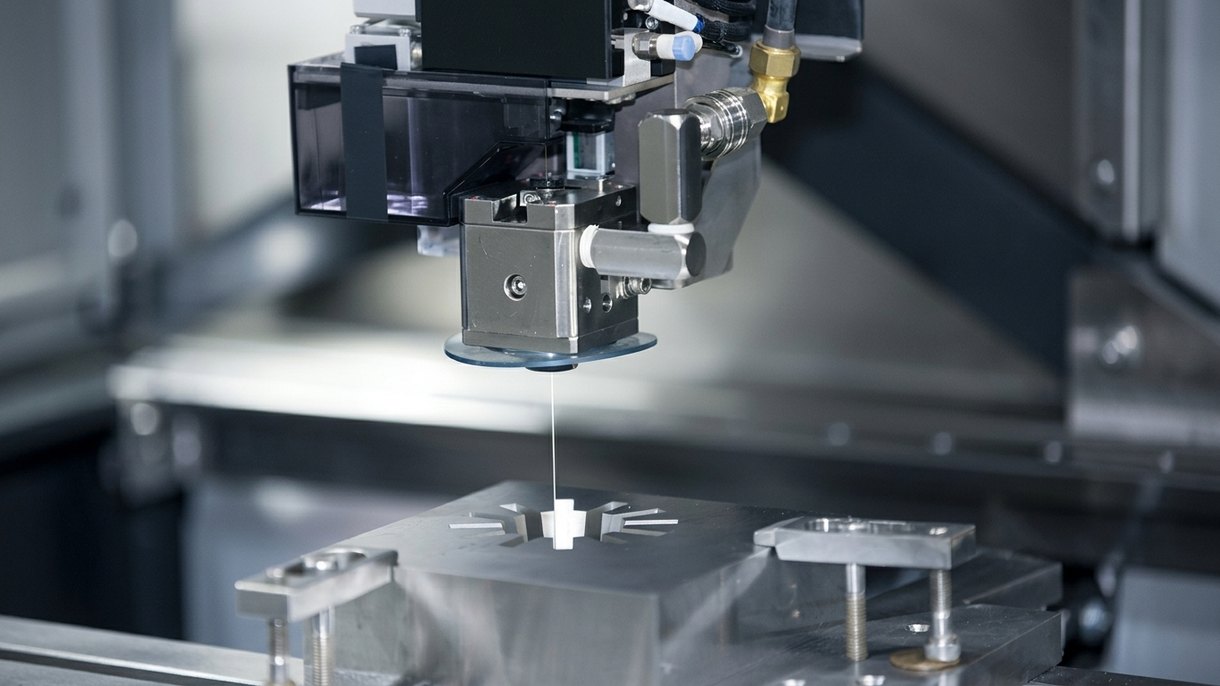

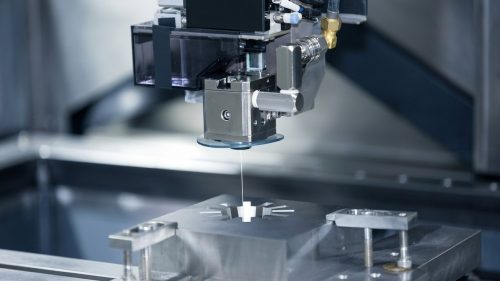

How Does a Wire Cutting Machine Work?
Wire cutting machines use a combination of electrical discharges and metallic wire to remove material from a workpiece. The machine can adjust its cutting speed based on the sensing of the wire and cutting conditions.
This process, known as Electrical Discharge Machining (EDM), takes place by flowing an electric charge through the dielectric medium that coats the electrode or workpiece, creating an arc between them used for precise control removal of metal.
The CNC tool allows operators to program different cuts into their designs according to shape requirements with minimal risk since they are designed to maintain an even power supply during operation no matter how long it has been operated.
In addition, tighter tolerances can be achieved than would typically be possible with conventional machining tools such as lathes and mills due to its ability to range from 0 - 400 Hz pulse lengths settings, which can create ultra-fine sparks that evaporate small amounts of material at very high accuracy levels.
Main Parts of Wire Cutting Machine
Wire cutting machines are complex equipment comprising several critical parts, including CNC tools, power supply, wire selection, and more.
By understanding the purpose each part serves and its role in the machining process, one can gain insight into how this advanced technology works.
CNC Tools
CNC (Computer Numerical Control) tools control and direct the entire operation.
The software, which uses sophisticated algorithms, takes input from model data and then controls the axes’ movements on a four-axes Cam system, ensuring the machining is accurate to the last detail.
CNC tools also assist in guiding operations like the automatic positioning of electrode wires for precise cuts throughout parts with multiple angles. This eliminates breathing issues during the wiring process, thereby achieving the desired technical grade finish to parts.
Wire cutting machines even allow users to program specialist operation parameters such as energization, time, etc.,
Power Supply
The power supply in a wire cutting machine provides the necessary electrical energy to drive various components, including the cutting tool and CNC system. It ensures a stable and consistent power source for efficient and reliable operation.
Wire Selection
Wire selection involves choosing the appropriate type and diameter of wire based on the specific requirements of the cutting process. The material and size of the wire impact the precision and quality of the cuts made by the machine.
Dielectric Medium
A dielectric medium is a fluid that facilitates the electrical charge between the wire electrode and workpiece during machining, helping to flush away debris and reduce thermal damage to the part being cut.
The most common materials used as a dielectric medium are deionized water or fluids with special properties designed for use in electric discharge machines (EDMs).
They act not only as an electrically insulative material but also effectively absorb heat released from the cutting zone, keeping temperatures low and maintaining precise cuts.
Wire Electrodes
Wire electrodes are the conductive wires used in the cutting process. They carry electrical current and generate the spark necessary to cut through the workpiece.
The choice of wire material and its properties influence the efficiency and effectiveness of the wire cutting machine.
What Materials Are Compatible with Wire Cutting Machines?
Wire cutting machines are capable of cutting through a variety of electrically conductive materials. These include aluminum, titanium, steel, brass, graphite, and softer metals like copper and brass.
Pros And Cons Of Wire Cutting Machine
It’s also essential to weigh the pros and cons of wire cutting machines—tools that have revolutionized precision manufacturing but also come with certain limitations.
Pros:
- Wire cutting machines offer exceptional accuracy and reproducibility, making them indispensable for producing complex shapes and intricate designs unattainable by conventional machining methods.
- One of the significant advantages is the burr-free cutting process. This seamless operation eliminates the need for secondary finishing, saving time and reducing material waste.
- As previously mentioned, these machines can handle a wide array of materials, including hard metals like carbide and Inconel, as well as softer ones such as brass, without compromising the integrity of the workpiece.
- Since the cutting is conducted by electrical discharge, there's no direct contact between the tool and the workpiece, minimizing the risk of mechanical stress or thermal distortion to the material.
- The ability to produce complex and delicate geometries makes wire EDM machines a go-to choice for industry-specific parts where precision is paramount.
Cons:
- Despite the sophistication, wire cutting is inherently slower than traditional machining, posing a bottleneck for high-volume production runs.
- The process is limited to electrically conductive materials, which excludes certain plastics and composites from its range of capabilities.
- Wire EDM machines are power-intensive, leading to higher operational costs when compared to some other machining processes.
- These machines require consistent maintenance to ensure peak performance, such as regular replacement of wire electrodes and management of the dielectric fluid.
- There's a cap on the thickness of the material that can be effectively cut, which might necessitate alternative methods for particularly thick workpieces.
How Many Axes Does a Wire Cutting Machine Have?
A wire cutting machine typically has several axes, depending on the model type and intended application.
The number of axes determines the degree to which a CNC unit can move in an X-Y plane and how complex shapes it can cut out using intricate wire guides movement.
Generally, the more axes a wire cutting machine has, the higher its performance will be when completing complex tasks such as 3D contouring or multi-directional curves.
Industry Applications of Wire Cutting Machines
The CNC wire cutting machine is widely used in various industries, including aerospace, automotive, medical device manufacturing, and the defense industry.
Here’s a list of common applications in each industry:
Aerospace Industry
- Precision machining of turbine components.
- Cutting intricate shapes in aircraft parts.
- Manufacturing of lightweight components for aerospace vehicles.
Automotive Industry
- Production of molds and dies for automotive parts.
- Fabrication of gears and transmission components with high accuracy.
- Cutting complex shapes in engine components.
Electronics Industry
- Production of microelectronic components with tight tolerances.
- Manufacturing of intricate parts for electronic devices.
- Cutting and shaping of small, delicate components.
Medical Device
- Precision machining of surgical instruments and implants.
- Manufacturing of intricate parts for medical devices.
- Creation of molds for dental prosthetics.
Defense Industry
- Production of precision components for weapons and ammunition.
- Manufacturing of parts for military aircraft and vehicles.
- Fabrication of specialized tools and equipment for defense applications.
Some Parameters for Wire Cutting Machine
Optimizing wire cutting machine performance involves understanding parameters such as material removal rate, surface finish, and how different materials interact with the EDM process.
Knowing these variables can help maximize efficiency and reduce production costs.
Effects on Material Removal Rate
The parameters for wire cutting EDM (Electrical Discharge Machining) machines, such as voltage, current, and wire speed, directly impact the Material Removal Rate (MRR).
Higher values of these parameters generally result in increased MRR, but finding the optimal balance is crucial to avoid excessive wear and maintain precision.
Optimization for Efficiency
Efficiency in wire cutting EDM is achieved by optimizing parameters like pulse duration, flushing conditions, and spark gap.
Finding the right combination enhances cutting speed and accuracy while minimizing energy consumption and wear on the cutting tool, contributing to overall machine efficiency.
Influence on Surface Finish
In wire EDM, achieving the best surface finish involves choosing the right combination of current, wire speed, and other factors based on the material being used.
Incorrect settings can lead to issues like rough surfaces and increased overcuts.
Considerations for Various Materials
Consider the material's type, hardness, and physical properties when choosing materials for wire cutting machines.
Different conductive materials like copper, brass, tungsten, and molybdenum wires coated with dielectric medium are viable.
For precise results, modern wire EDM machines handle various materials such as graphite, soft metals, and plastics, offering flexibility in production cycles.
How to Maintain and Care of Your Wire Cutting Machine?
- Regular cleaning and lubrication of the machine are essential for proper functioning, including all components, such as power feeders and electrical cables.
- Keep cutting liquid concentration between 8 and 12.5 while maintaining an optimal water tank level per the manufacturer's recommendation.
- Static maintenance should be done before dynamic maintenance, focusing on the machine’s performance during operation.
- It is important to inspect electrolytes and power feeders regularly to ensure the correct working condition of wire EDM machines.
- Follow the Maintenance Manual guidance provided by manufacturers for detailed information on how best to maintain your wire-cutting machine.
Conclusion
In conclusion, wire cutting machines are versatile and efficient tools that offer highly precise results for various materials. They have a broad range of applications in industries ranging from aerospace to medical device manufacturing.
Besides offering a high level of precision, the speed at which wire EDM machines can cut and shape wire makes them extremely productive solutions. Since they don’t use direct pressure or force for machining, it eliminates possibilities like taper cuts and also protects delicate parts against overheating throughout the process.
With regular maintenance, these machines tend to last longer and allow businesses to save big on tooling and manpower costs over time while providing consistent results every time.
