Как выбрать правильный воротник вала для вашего применения
Правильный выбор муфты вала для вашего применения очень важен для обеспечения бесперебойной работы механических систем.
Different applications have unique requirements that can influence collar selection, and selecting an appropriate one is critical for optimizing performance.
With the right information and tips, you can make an informed decision and ensure optimal results regardless of the complexity of your project.
What is a Shaft Collar?
A shaft collar is a great way to ensure your machine runs smoothly. It's a mechanical component that wraps around a rotating shaft to provide clamping force or maintain the position of other components in an assembly.
These handy devices are essential whether you're anchoring gears for optimal power transfer, stabilizing bearings within intricate machinery, or guiding moving parts.
Plus, they come in different materials like steel and stainless steel as well as aluminum alloy and plastic - each with its strengths and weaknesses - so you can find one that best fits your needs.
Select the right type of collar for your application - whether set screw, clamp, threaded or one-piece - so you can trust your machine will work efficiently without any unexpected maintenance needs!
Common Materials Used for Shaft Collars
- Сталь
- Алюминий
- Plastic (Nylon, Acetal)
- Латунь
- Бронза
- Цинк
- Ductile Iron
- Stainless Steel Alloy
- Die-Cast Zinc Alloy
- Thermoplastics (Polycarbonate, Polypropylene, Polyethylene)
- Rubber or Elastomers
Shaft Collar Types

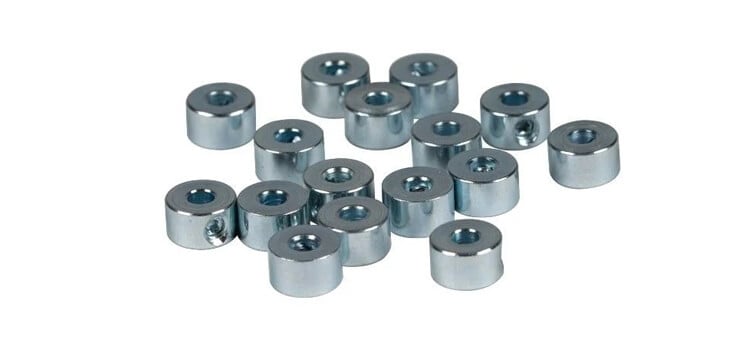

- Set Screw Shaft Collars:Features one or more set screws to secure the collar onto the shaft, creating a firm grip.

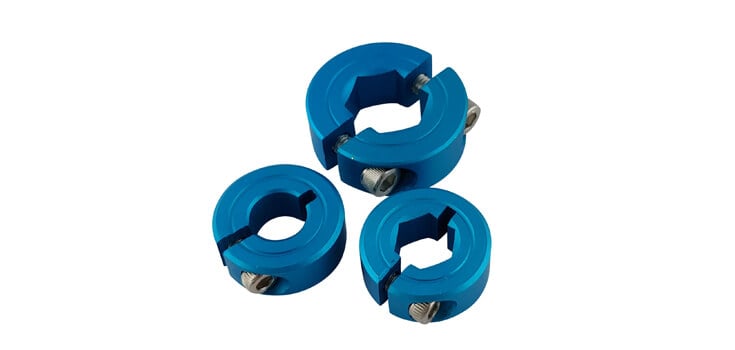

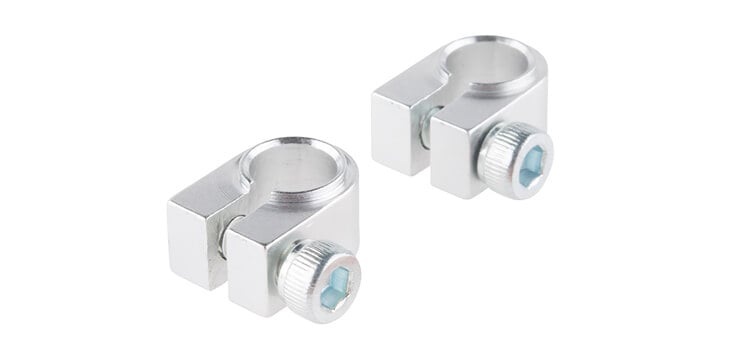

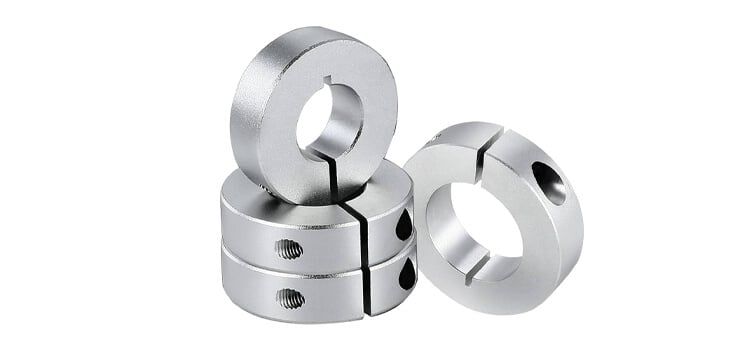

- Clamp-On Shaft Collars:Utilizes a split design with a clamp mechanism to grip the shaft tightly when tightened.
- One-Piece Solid Shaft Collars:A single solid ring without any moving parts, often used for simple positioning and stopping.
- Threaded Shaft Collars:Designed with internal or external threads for easy adjustment and secure fastening.
- Double Split Shaft Collars:Features two splits for enhanced holding power and better balance.
- Hinged Shaft Collars:Equipped with a hinge and a clamping screw for quick installation without shaft disassembly.
- Flanged Shaft Collars:Incorporates a flange that provides extra support and prevents axial movement.
- Custom or Specialized Shaft Collars:Designed for specific applications, these collars may have unique features or materials.
- Shaft Collars with Mounting Holes:Includes holes for attaching accessories, components, or hardware.
- Two-Piece Clamp Style Shaft Collars:Consists of two pieces that are clamped together, offering a higher clamping force.
- Step Shaft Collars:Has varying inside diameters on both sides to accommodate different shaft sizes.
- Thin Line Shaft Collars:Features a thinner profile for space-constrained applications.
- Quick Release Shaft Collars:Equipped with a quick-release lever for easy installation and removal.
- Positioning Shaft Collars:Designed to secure components in specific positions along the shaft.
- Bearing Lock Nuts:Threaded collars with lock nuts are used for the secure mounting of bearings.
- Compression Shaft Collars:Exert radial force evenly on the shaft without causing damage.
- Indexed Shaft Collars:Have markings or detents to assist with precise positioning.
- Serrated Shaft Collars:Feature serrations on the inner surface for improved grip and holding power.
- Axial Locking Shaft Collars:Designed to prevent axial movement along the shaft.
- Climax Shaft Collars:A brand name often associated with high-quality shaft collars.
Factors to Consider When Choosing the Right Shaft Collar for Your Application
Shaft Diameter and Material of Construction
Ensure the collar's inner diameter matches the shaft diameter accurately and within the specified tolerances. Select a collar material compatible with the shaft material to prevent slippage, wear, or damage.
Operating Environment
Consider the temperature, humidity, presence of chemicals, and other environmental factors that the collar will be exposed to. Choose a material that offers suitable corrosion resistance for the specific environment.
Shaft Movement
Determine if the shaft experiences axial or radial movement, as different collar types offer varying levels of flexibility and stability.
Load Capacity and Torque Requirements
Evaluate the magnitude and direction of the loads and torques the collar will need to handle. Choose a collar with the appropriate load-bearing capacity to prevent deformation or failure.
Space Constraints and Frequency of Adjustment
Consider the available space on the shaft and surrounding components. Choose a collar with dimensions that fit within the allocated space. If adjustments are frequent, opt for collars that offer easy and quick adjustment mechanisms.
Installation and Removal Methods
Determine the preferred method of installation and removal. Set screw, clamp-on, or other mechanisms each have different installation requirements. Select a collar that aligns with your preferred method for ease of use and maintenance.
Special Features
Evaluate if you need special features such as keyways, tapped holes, index marks, or anti-corrosion coatings to match your application's needs.
Vibration and Shock
If your application involves significant vibration or shock loads, choose a collar with features that minimize slippage, such as set screws with locking elements.
Supplier Reputation
Choose a reputable supplier known for quality, reliability, and customer support. Check reviews and gather recommendations if possible.
Cost and Budget
Consider the budget while ensuring the collar meets quality and performance requirements. Some specialized features may come at an additional cost.
Application Specifics
Account for any unique requirements or challenges presented by your application that may affect the collar's performance.
Количество
If you need multiple collars, inquire about bulk pricing or discounts from the supplier.
Examples of Shaft Collar Applications
- Промышленность Machinery:Used to secure bearings, sprockets, pulleys, and other components onto shafts in conveyor systems, manufacturing equipment, and assembly lines.
- Power Transmission Systems:Installed on motor shafts, gearboxes, and drive shafts to hold components like pulleys, couplings, and timing gears in place.
- Agricultural Equipment:Used in farm machinery to secure parts like PTO shafts, wheels, and rotating implements to ensure proper functioning.
- Автомобильная промышленность:Utilized in vehicles for securing components such as drive shafts, steering column components, and engine accessories.
- Robotics and Automation:Used in robotic arms and automated equipment to attach sensors, actuators, and end effectors to shafts.
- Packaging Machinery:Applied to hold gears, rollers, and spindles in packaging machines that handle filling, sealing, and labeling processes.
- Конвейерные системы:Secured onto conveyor rollers and shafts to hold pulleys, belts, and rollers in place for material handling.
- Printing and Labeling Equipment:Used to secure print heads, label applicators, and other components on printing and labeling machines.
- Медицинские приборы:Applied in medical equipment for securing components like shafts, wheels, and pulleys used in diagnostic and treatment devices.
- Pumping Systems:Installed on pump shafts to secure impellers, couplings, and other parts in various fluid pumping applications.
- Аэрокосмическая и авиационная промышленность:Utilized in aircraft systems for holding components like control surfaces, actuators, and propeller shafts.
- Морское оборудование:Used in boats and ships to secure components like propellers, shafts, and steering mechanisms.
- Construction Equipment:Applied in construction machinery for securing parts like shafts, drums, and rollers in heavy equipment.
- Woodworking Machinery:Used to secure cutting tools, spindles, and other rotating parts in woodworking equipment.
- Mining and Quarrying:Installed on machinery used in mining operations to secure conveyor belts, screens, and other equipment.
- Textile Machinery:Used to secure components like rollers, spindles, and guides in textile manufacturing machinery.
- Food and Beverage Processing:Applied in equipment used for processing, packaging, and conveying food products.
Заключение
Making the right decision when selecting a shaft collar for your application is essential, as it can significantly impact your machine's performance.
It is important to consider all relevant factors, such as shaft diameter and material of construction, before making a selection.
Additionally, different types of collars come with their advantages and disadvantages, so ensure you select the one that best meets your application's specific needs.
Take the time to research and evaluate all available options carefully before committing!
