10 Tips for CNC Machining a Bracket with Tight Tolerance

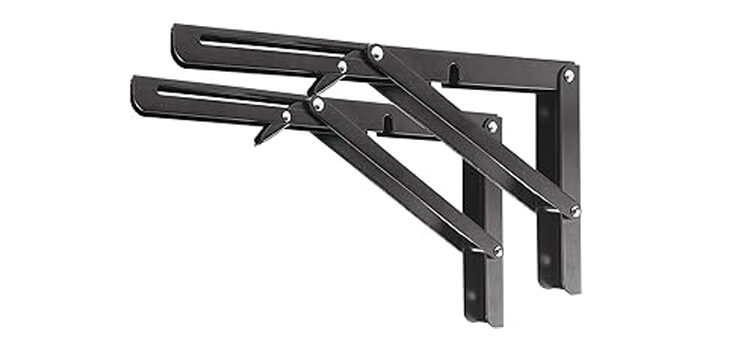

Brackets play an important role in many industries and applications.

CNC machining techniques allow manufacturers to produce these components with precision and accuracy that meet even the most demanding customer requirements.

With the right guidance from a machining tolerances guide, you can create reliable products that last longer while saving money simultaneously!

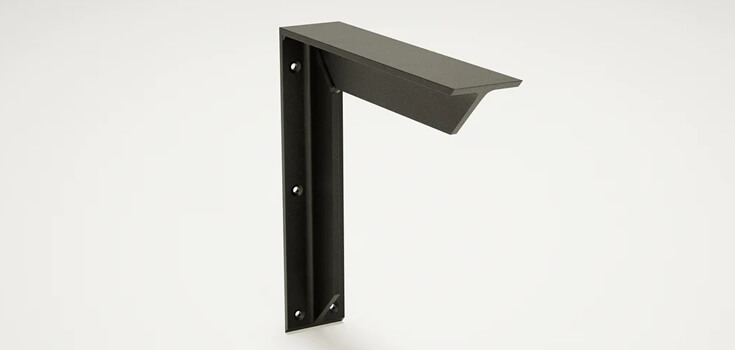

Importance of Tight Tolerance in CNC Machining

In CNC machining, tight tolerances refer to the degree of precision and accuracy required when producing a part or component. It represents the allowable variation in dimensions from the designed specifications.

Achieving tight tolerances ensures high-quality parts that meet specific design requirements for functionality, reliability, and aesthetics.

Additionally, consistently meeting tight tolerances can save costs by minimizing production waste due to rejected parts not meeting dimensional standards.

Tips For CNC Machining A Bracket With Tight Tolerance

 1. Proper Tool Selection And Setup

Choosing the appropriate cutting tool for a specific material is essential to ensure it's set up correctly in the machine. One of my go-to tips is using specialized coatings on tools to help them perform better and last longer.

I also pay close attention to the tool holder and spindle interface for optimal performance. Any misalignment or wear can cause issues with accuracy, surface finish, and even damage to the tool itself. Therefore, I care extra when setting up these components before machining starts.

In one project where we had tight tolerance requirements for machined brass brackets used in an aerospace application, we opted for high-speed steel end mills coated with titanium aluminum nitride (TiAlN). These particular tools provided excellent heat resistance while maintaining their sharpness even after prolonged use.

Additionally, proper setup and maintenance procedures, such as clearing chips out frequently throughout the operation, led us to achieve precise cuts that met our customer's specifications every time.

2. Clean And Stable Work Environment

Even the smallest dust particles or vibrations can affect the accuracy of your machining operations, leading to costly errors and rework. That's why I always ensure that my work area is debris-free and that my machines are properly anchored to prevent unwanted movements.

Aside from physical cleanliness, a stable temperature and humidity level are crucial in achieving consistent results in high-precision CNC machining. Sudden changes in either parameter can cause material expansion or contraction, affecting machined part dimensions.

In my workshop, I use temperature control systems such as air conditioning units or specialized heat exchangers to maintain optimal conditions for tight-tolerance machining operations.

With a clean and stable work environment, I can entirely focus on optimizing tool paths and cutting parameters to achieve the desired outcomes without worrying about external factors affecting machined parts' quality.

3. Optimize CNC Programming Techniques

• Start with a Solid CAD Model
• Use CAM Software to Generate Toolpaths
• Consider CNC Simulation Software
• Select the Right Cutting Tools
• Establish Proper Speeds and Feeds
• Implement Advanced Machining Strategies
• Utilize Multi-Axis Machining When Appropriate
• Keep Coolant Flowing
• Optimize Tool Changes
• Monitor Progress Throughout the Machining Process

4. Choose The Right Material And Grade

Common materials used in CNC machining include aluminum, stainless steel, and brass. However, these materials have properties that can affect how well they are suited for specific applications.

Considering factors such as cost reduction and tolerance stack-up is essential when selecting the suitable material for your project. Choosing the correct grade of material can also impact part quality and accuracy.

Higher-grade materials may have tighter tolerances or better surface finishes than their lower-grade counterparts. Understanding the properties of different grades can help you decide which suits your project best during CNC Machining operations.

5. Use Proper Clamping And Fixturing Techniques

• Select the right fixture for your part
• Check the fixture for any damage before mounting your part
• Ensure proper alignment and positioning of the workpiece before tightening
• Tighten screws or bolts incrementally and in a criss-cross pattern to avoid uneven pressure on the workpiece
• Use soft jaws or protective coatings on clamps to prevent part distortion or damage
• Consider using vacuum fixtures for delicate parts or thin materials
• Avoid over-tightening as it can cause deformation of the workpiece
• Use a torque wrench for consistent tightening force
• Verify the stability of your fixture setup during machining operations
• Implement regular maintenance checks on your fixtures for wear and tear

6. Monitor And Adjust Cutting Parameters

This process can help ensure that machined parts meet the required tolerances, which is crucial when dealing with brackets or other precision parts.

In addition, by using tools like software-based monitoring systems or simply observing machine performance regularly, operators can stay on top of cutting parameters.

Another thing to remember when monitoring and adjusting cutting parameters is that different materials require different settings. For instance, stainless steel might require a slower feed rate than aluminum due to its increased hardness.

Knowing your material's specific requirements will go a long way toward achieving tight tolerance results more efficiently.

In addition to material dependence and feedback from machine monitoring systems, paying attention to tool wear is an essential aspect of adjusting cutting parameters.

For example, using worn-out milling tools could lead to inconsistent cuts or damage to the workpiece surface during machining operations.

7. Perform Frequent Quality Control Checks

By regularly checking for any deviations from the design specifications, you can catch any errors early on and make adjustments as needed.

One method for quality control checks is to use inspection equipment such as micrometers or vernier calipers to measure critical dimensions of the part. Checking for burrs and other surface imperfections can also help ensure the finished product meets the required standards.

Documenting each quality control check to track changes and improvements over time is also important. Reviewing this data helps identify areas where further improvements can be made in your machining processes.

8. Deburr And Finish Machined Surfaces

Deburring involves removing any rough or sharp edges left behind after milling, while finishing involves smoothing out the surface of the workpiece to achieve the desired texture or appearance. This step is necessary to avoid part failure or reduced overall quality.

I recommend using specialized tools such as abrasive stones, sandpaper, or polishing pads to ensure proper deburring and finishing. These tools help remove burrs and smooth out any imperfections left by cutting tools during machining.

9. Implement Preventive Maintenance Measures

One of the best ways to maintain your machinery is by implementing preventive maintenance measures. This means performing routine checks and servicing on a schedule rather than waiting until something goes wrong.

For example, you can establish a daily checklist for inspecting tools, lubricating equipment, checking coolant levels, and cleaning work areas. By doing so, you'll be able to identify potential problems before they become major issues that can lead to lengthy downtime or costly repairs.

Preventive maintenance also includes keeping records of all inspections and services performed on each machine. These records can help identify patterns of wear or mechanical breakdowns over time, which can then be used to improve the machining process.

10. Continually Improve Machining Processes

Whether finding more efficient tool paths or fine-tuning our cutting parameters, continuous improvement should be an ongoing goal of any machine shop.

One way to continually improve machining processes is through regular communication and feedback from team members. By sharing knowledge and experience, we can discover new methods and techniques to make our work more accurate and efficient.

Staying updated on the industry's latest technology and software advancements is also important.

Another key aspect of improving machining processes is analyzing data from previous projects. This allows us to identify areas where we can reduce waste, minimize downtime, or cut costs without sacrificing quality.

Additionally, incorporating lean manufacturing principles can help streamline operations by eliminating unnecessary steps in the production process.

Factors Affecting Tight Tolerance

Materialeigenschaften

The material being used can expand, contract, deform, or exhibit other changes in dimensions based on temperature variations, stress, and other factors. Understanding the material's behavior is crucial in predicting and compensating for dimensional changes.

Machine Accuracy

The precision and accuracy of manufacturing equipment, such as CNC machines, lathes, and milling machines, play a significant role in maintaining tight tolerances. High-quality machines with minimal backlash and high-resolution positioning systems are essential.

Tool Wear and Deflection

As cutting tools are used, they experience wear, leading to deviations from the intended dimensions. Tool deflection under cutting forces can also impact the accuracy of the machined features.

Tool Path Optimization

The cutting tool's path can affect the final dimensions. Optimized tool paths that minimize abrupt changes in direction, reduce vibration and evenly distribute cutting forces help achieve better accuracy.

Fixturing and Workholding

How the workpiece is held in place during machining can introduce variations. Proper fixturing that minimizes movement and vibration is crucial to maintaining tight tolerances.

Kühlmittel und Schmierung

Coolant and lubrication can influence temperature and friction, affecting the accuracy of the machining process. Consistent application of coolant/lubricant is important to ensure predictable results.

Umweltbedingungen

Temperature, humidity, and other conditions can cause materials to expand or contract, impacting dimensional stability. Controlling the shop environment helps minimize these variations.

Measurement and Inspection Equipment

The accuracy of measurement tools, such as micrometers, calipers, and CMMs (coordinate measuring machines), is essential for verifying tight tolerances. Regular calibration of these tools is critical.

Operator Skill and Training

The expertise of the machine operator significantly affects the outcome. A skilled operator can adjust, troubleshoot issues, and optimize processes to achieve tighter tolerances.

Materialhandhabung

Mishandling of materials can introduce defects or dimensional changes. Proper care during material handling minimizes the risk of introducing inaccuracies.

Quality Control Processes

Implementing a robust quality control process that includes in-process inspections and final checks can catch deviations early and prevent out-of-tolerance parts from reaching the final stage.

Überlegungen zur Gestaltung

The part's design can impact how achievable the specified tolerances are. Complex geometries, sharp corners, and intricate features require additional attention and precision in manufacturing.

Schlussfolgerung

Achieving consistent results with tight tolerance CNC machining requires precision and attention to detail. So, you need to make sure every step is done correctly.

From proper tool selection and setup to a clean and stable work environment, the importance of accuracy can't be overstated.

Consider factors such as power and speed when choosing a machine. Use specialized coatings for tools and ensure alignment of the spindle and tool holder for optimal performance. Maintain temperature and humidity levels in the workspace.

Select the right material grade for each job and use proper clamping and fixturing techniques during cutting operations.

Lastly, monitor progress throughout the machining process and adjust cutting parameters accordingly. All these steps are crucial when striving for tight tolerance outcomes.
